Hot Wire Anemometer AM-288

$159.99

Brand	VVV-Group
Material	Metal, Plastic
Item dimensions L x W x H	9.84 x 7.87 x 2.76 inches
Item Weight	230 Grams
Manufacturer	VVV-Group

About this item

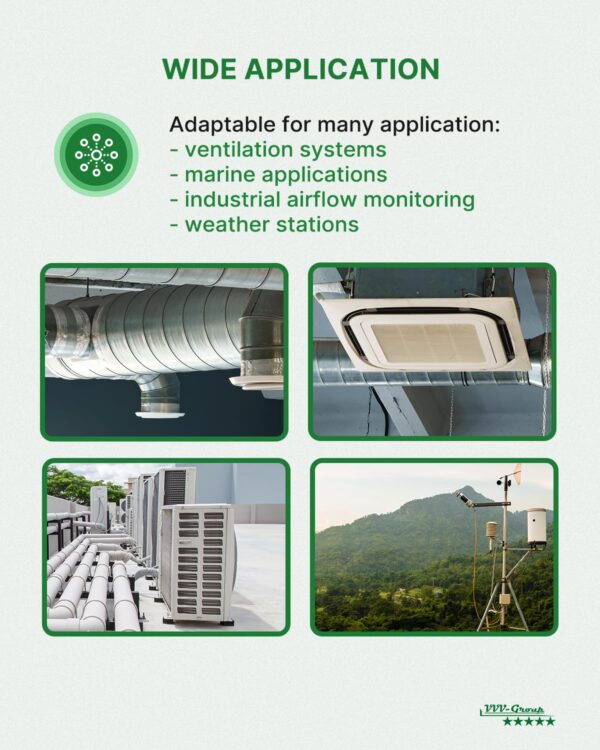

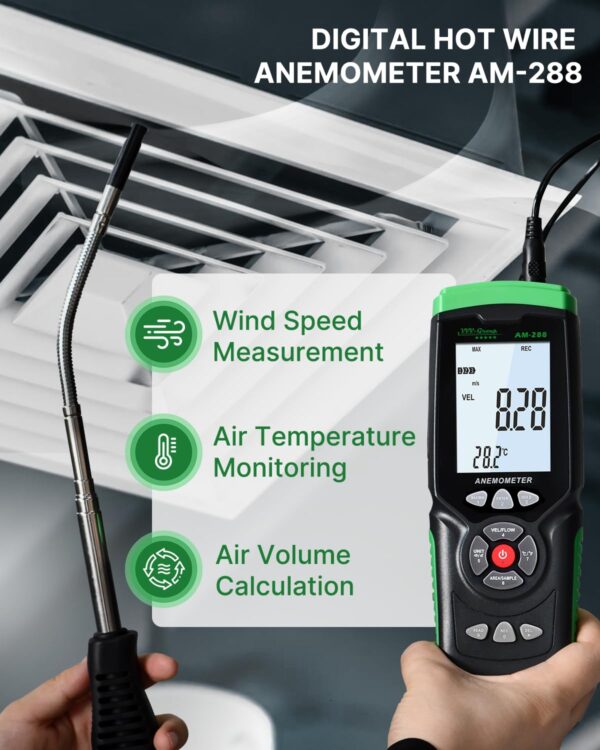

PROFESSIONAL HVAC AIRFLOW METER WITH DATA LOGGING: Hot wire anemometer designed for HVAC diagnostics, duct airflow measurement and ventilation balancing. Measures air velocity, airflow volume (CFM / CMM) and air temperature with high sensitivity and stable readings for professional use.
TRUE CFM / CMM CALCULATION — NO MANUAL FORMULAS: Automatically calculates airflow volume by combining measured wind speed with user-entered duct or vent area, eliminating calculation errors and saving time during HVAC inspections.
WIDE WIND SPEED RANGE WITH HIGH RESOLUTION: Measures air velocity from 0.0 to 30.0 m/s (0–108 km/h, 0–67 mph) with 0.01 resolution, making it suitable for low-speed airflow measurement where vane anemometers are less accurate.
BUILT-IN DATA LOGGING — UP TO 960 RECORDS: Internal memory stores up to 960 data sets. Supports single and continuous recording with an adjustable logging interval from 0 to 9999 seconds for long-term airflow monitoring.

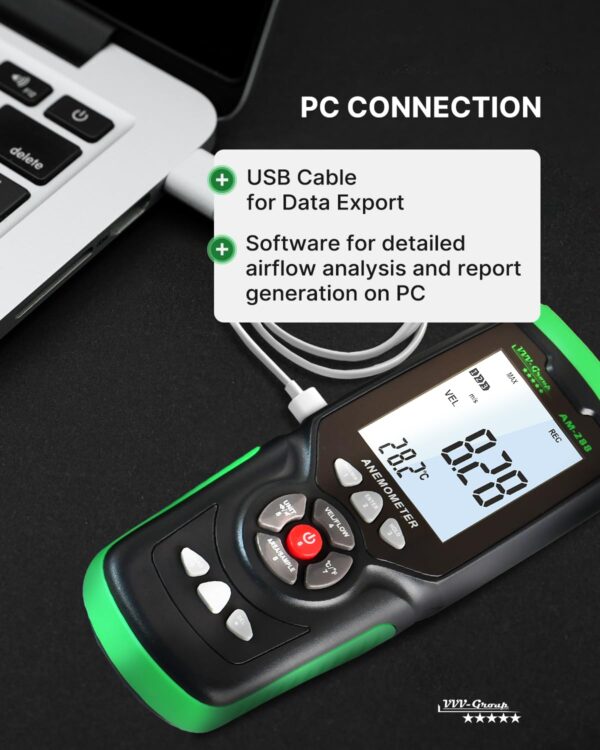

USB PC CONNECTION & SOFTWARE ANALYSIS: Connects to a PC via USB for real-time monitoring, historical data review, line graph analysis, Excel export and printable reports using included Windows software.
HIGH-SENSITIVE HOT WIRE SENSOR: Thermal hot wire sensor provides fast response and high accuracy, especially at low air velocities, ideal for ducts, diffusers, exhaust systems and confined HVAC spaces.

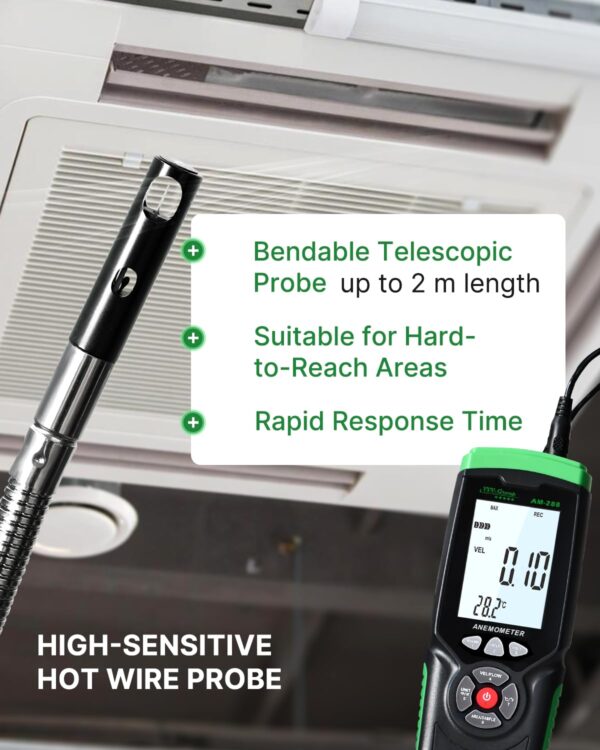

FLEXIBLE TELESCOPIC PROBE FOR HARD-TO-REACH AREAS: Bendable telescopic probe extends up to 2100 mm, allowing accurate airflow measurement deep inside air ducts, ceiling vents and narrow openings.

AIR TEMPERATURE MEASUREMENT: Built-in temperature sensor measures air temperature from 0°C to 45°C (32°F to 113°F) with ±1.0°C accuracy, enabling combined airflow and thermal diagnostics.

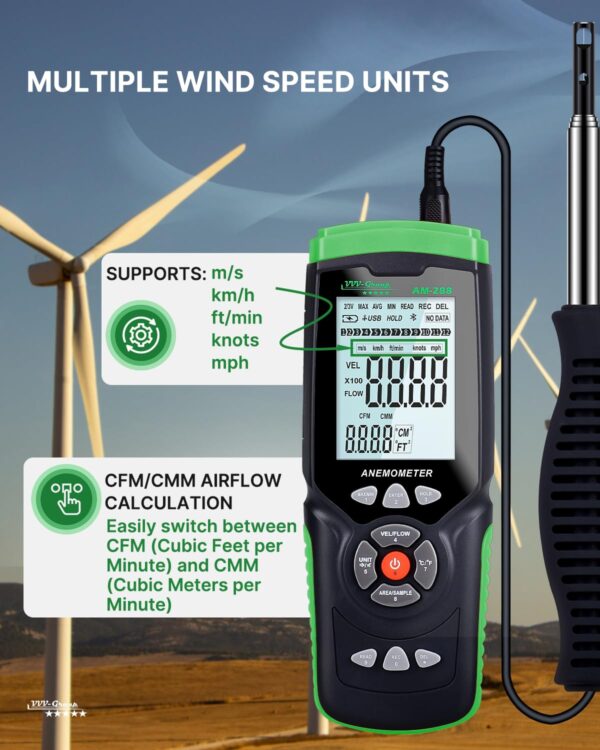

MULTIPLE UNITS & MEASUREMENT MODES: Supports m/s, km/h, ft/min, knots and mph. Includes MAX / MIN / AVG / HOLD functions for airflow analysis, documentation and reporting.

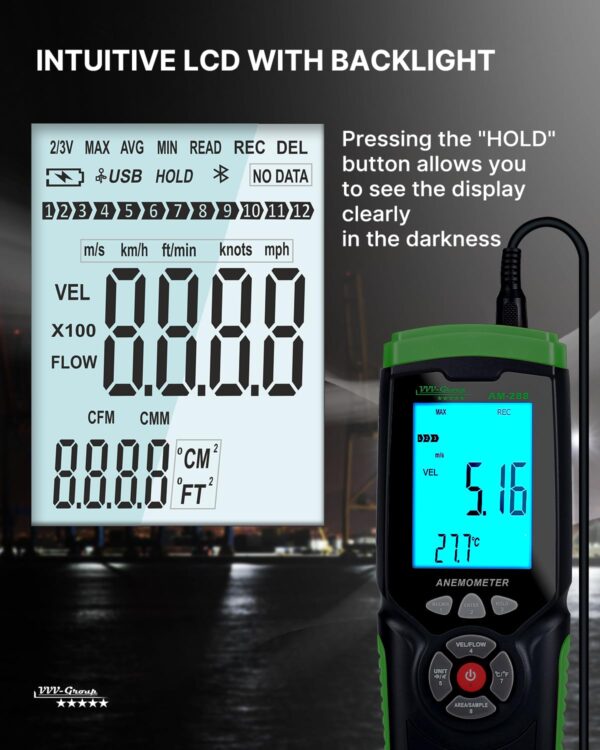

BACKLIT LCD & RECHARGEABLE BATTERY: Large backlit LCD ensures clear visibility in low-light environments. Powered by a rechargeable lithium-ion battery with automatic shutdown to extend battery life.

Product description

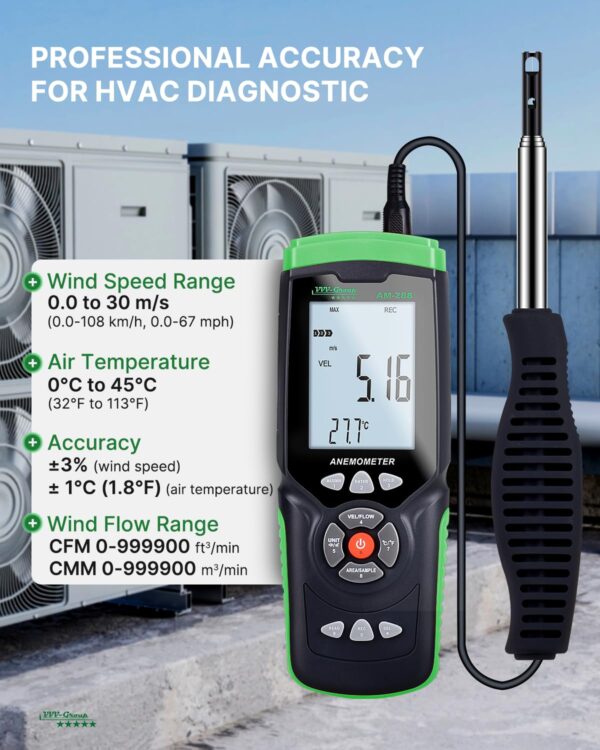

Anemometer AM-288 FUNCTION AND SPECIFICATION:

Measurement Type:	Hot wire (thermal) anemometer
Wind Speed Range:	0.0–30.0 m/s (0–108 km/h, 0–67 mph)
Wind Speed Resolution:	0.01
Wind Speed Accuracy:	±3% ±0.1
Airflow Measurement:	CFM / CMM calculation (velocity × area)
Airflow Range:	CFM: 0–999900 ft³/min; CMM: 0–999900 m³/min
Temperature Measurement Range:	0°C–45°C (32°F–113°F)
Temperature Accuracy:	±1.0°C (±1.8°F)

Data Logging Capacity:	Up to 960 records
Recording Modes:	Single record / Continuous recording
Recording Interval:	0–9999 seconds (adjustable)
PC Connection:	USB data transfer (Real-time monitoring, historical data review, line graphs, Excel export, printable reports)
Supported Units:	m/s, km/h, ft/min, knots, mph
Probe Type:	High-sensitive hot wire probe, bendable & telescopic
Additional Functions:	MAX / MIN / AVG / HOLD
Battery:	Rechargeable Battery

Hot Wire Anemometer

Product information

Technical Details

Product Dimensions	‎9.84 x 7.87 x 2.76 inches
Item Weight	‎8.1 ounces
Manufacturer	‎VVV-Group
ASIN	‎B0FK2C11Y1
Item model number	‎АM-288
Date First Available	‎July 26, 2025
