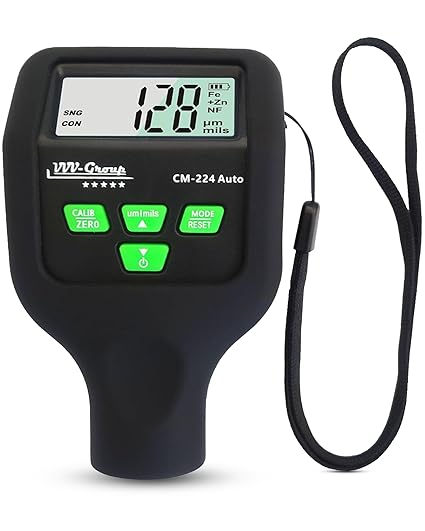

Paint Thickness Gauge CM-224

$59.99

HIGH ACCURACY — READY TO USE FOR CAR INSPECTION: Professional paint thickness gauge with factory-calibrated accuracy for automotive inspection. Delivers precise measurements immediately after battery installation — no calibration required for car body checks. Resolution 0.1 μm (0.01 mils), range 0–1500 μm (0–59.1 mils).

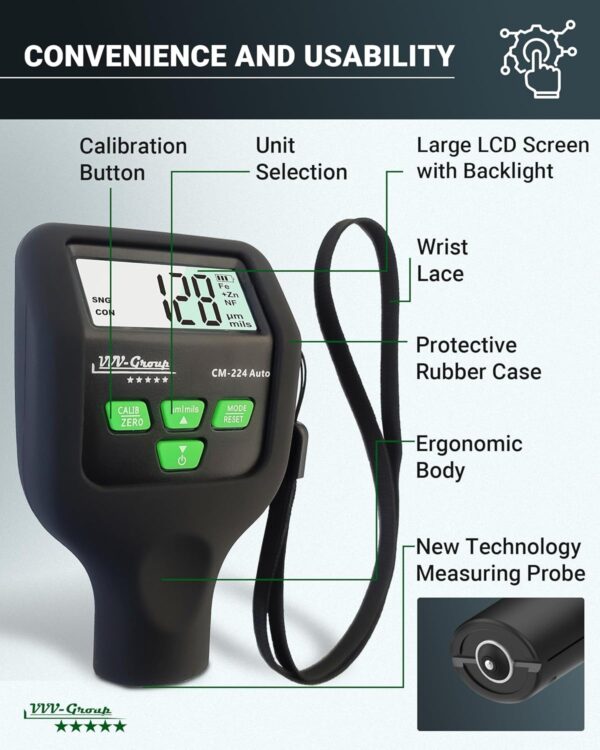

EASY & FAST OPERATION — NO SETUP REQUIRED: Automatic substrate detection and pre-set factory calibration allow instant use out of the box. Large backlit LCD and intuitive controls make this coating thickness meter ideal for both professionals and first-time users.
AUTOMATIC Fe / NFe / Fe+Zn SUBSTRATE DETECTION: Automatically recognizes steel (Fe), aluminum (NFe), and galvanized steel (Fe+Zn). Fe+Zn detection helps identify replaced or non-original car body panels during used car inspection.
DESIGNED SPECIFICALLY FOR AUTOMOTIVE INSPECTION: Accurately evaluates paint thickness, repainting, and filler presence on metal car panels. Ideal for used car buyers, vehicle appraisers, body shops, and detailing professionals.
DUAL MEASURING TECHNOLOGY FOR METAL SURFACES: Uses magnetic induction for ferrous metals and eddy current technology for non-ferrous metals, ensuring stable and repeatable measurements on steel, aluminum, and copper substrates.

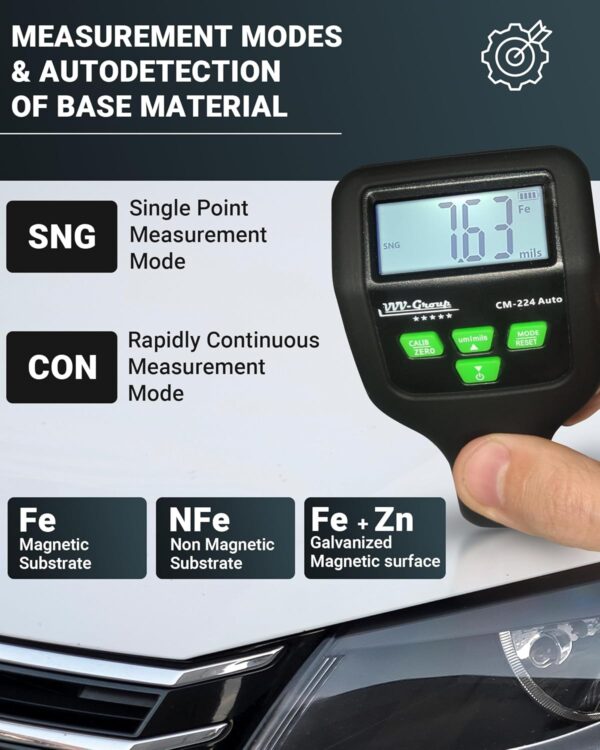

SINGLE & CONTINUOUS MEASUREMENT MODES: Supports single-point (SNG) mode for precise spot checks and continuous (CON) mode for rapid scanning of large vehicle panels.
OPTIONAL ADVANCED CALIBRATION & FACTORY RESET: Supports zero calibration and multi-point calibration for special materials or professional applications. Instant factory reset restores default settings at any time — useful after incorrect calibration or extended use.
METAL SURFACES ONLY — CLEAR & HONEST LIMITATION: Designed exclusively for metal substrates (steel, iron, aluminum, copper). Not suitable for plastic, carbon fiber, or composite parts, preventing incorrect expectations and misuse.

CM-224 Auto paint thickness gauge measuring car fender coating thickness on steel surface

Paint thickness gauge for cars with Fe NFe Fe+Zn substrate detection for accurate testing

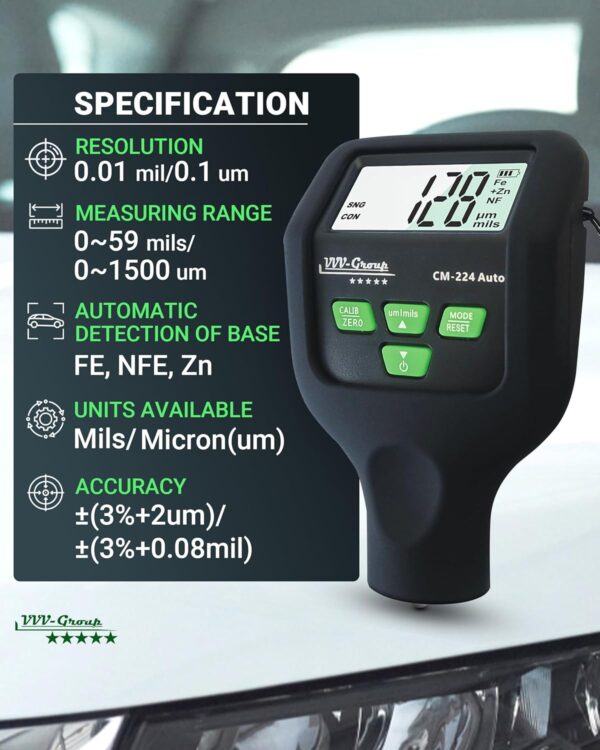

SPECIFICATIONS for Paint Thickness Gauge CM-224Auto

Supported base materials	Ferrous metals (steel, iron), non-ferrous metals (aluminum, copper), galvanized steel (Fe+Zn)
Substrate detection	Automatic recognition of Fe / NFe / Fe+Zn substrates
Measuring principle	Magnetic induction (Fe, Fe+Zn) and eddy current technology (Al, Cu)
Measurement range	0–1500 μm (0–59.1 mils)
Resolution	0.1 μm (0.01 mils)
Accuracy	±(3% + 2 μm) / ±(3% + 0.08 mils)
Measurement modes	Single measurement (SNG) and continuous measurement (CON)
Measurement speed	Less than 1 second per reading

Fe+Zn detection capability	Detects galvanized layer ≥15 μm; detection depth up to 200 μm
Calibration methods	Zero calibration and multi-point calibration using calibration foils
Units	μm / mils
Display	Large LCD with backlight and battery level indicator
Auto power off	Yes, after 5 minutes of inactivity

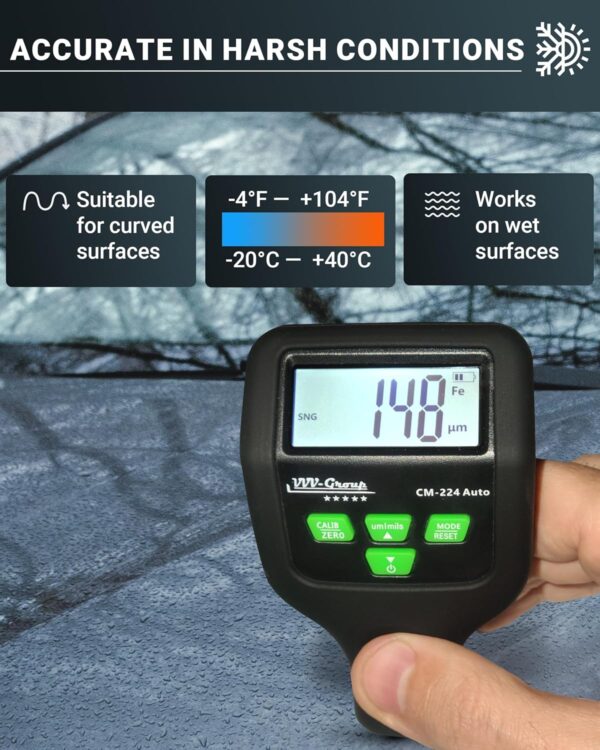

Operating temperature	–20 °C to +40 °C (–4 °F to 104 °F)
Operating humidity	Up to 90% RH
Power supply	2 × 1.5 V AAA batteries

Paint Thickness Gauge

The best Paint Thickness Gauge for professional car body inspection.

This model was created to help in choosing and assessing the condition of the car.

This model is very easy to use and has all the necessary functions for carrying out a professional inspection, while the thickness gauge is so easy to use that any untrained user can always check the paintwork with professional accuracy.

Your indispensable Assistant is always on the protection of your interests.

Paint Thickness Gauge

Application of the CM-224 Thickness Gauge

Conveyor Painting: Measurement of coating thickness to control the quality of painting.

Car Testing: Identification of damaged body parts on cars.

Fireproof Coating: Measurement of thicknesses of metal fire protection coatings.

Anti-corrosion Coating: Control of the thickness of the anti-corrosion coating

Paint Thickness Gauge

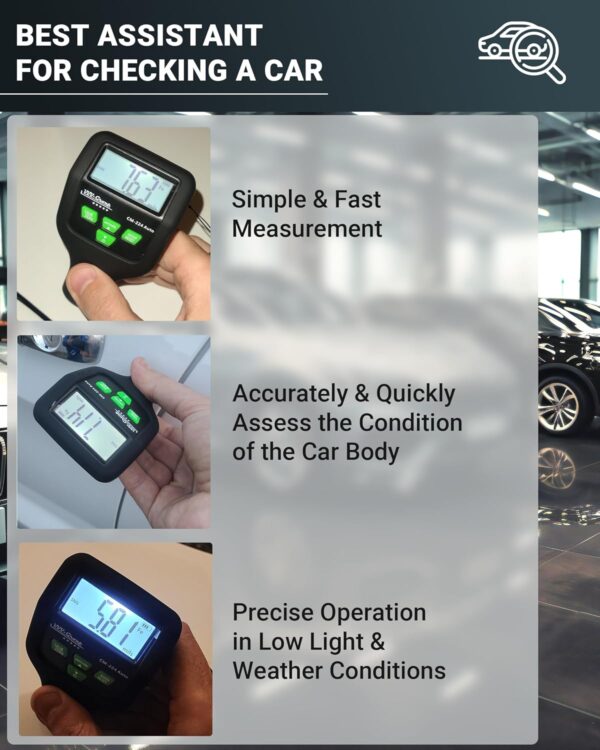

Best Assistant for car Expert

Automatic detection of base material – iron, zinc and aluminum
Convenient informative backlit display
Thickness measurement of non-magnetic coating on magnetic metal substrate surface and non-metallic coating on non-magnetic metal substrate
Two measurement methods: single measurement, continuous measurement
Basic calibration and Zero-point calibration available
Metric/imperial unit and storage function
Automatic shutdown.
New technology of the measuring probe
Compensation for temperature changes
