VVV-Group aint film instrument is professionally used for automotive paint thickness inspection. It features the classic function of automatically identifying iron, aluminum body and plastic substrate.
Mobile APP It can be connected to the mobile APP via Bluetooth, and a test report can be generated with one click. The mobile APP can be operated online and the test data can be generated into a test report.
The dual-screen design ensures that users can read quickly when measuring the car at any angle. paint mil gaugepaint mil thickness testingpaint mill gauge.
Equipped with high-definition LCD screen and ultra-low temperature LCD screen, it can be used normally in strong light and -40 °C temperature environment.
Adopts new intelligent identification algorithm, which can detect accident cars refined with metallic putty, and can also automatically identify galvanized-iron high-grade anti-corrosion body.
Paint Thickness Gauge СM-228Pro+ is the most functional Car tester

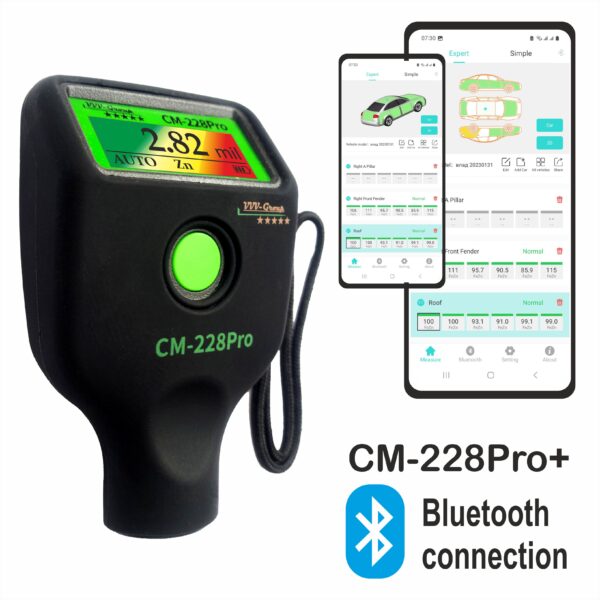

The Coating Thickness Gauge СM-228Pro+ is the only multifunctional meter that has full Bluetooth integration.
You can use the Paint Thickness Gauge as an independent tester without connecting to a phone. That is, like a standard portable thickness gauge. Or as a complete expert complex by connecting the device via Bluetooth to a Phone or Tablet.
The application allows you to create detailed reports on the condition of the car body. The user also has the opportunity to enter complete information about the car such as year of manufacture, make, color, mileage. This report can then be viewed, sent or saved in PDF, PNG, TXT format.
Also, based on the measurements, the program itself will draw a conclusion about the condition of the body and show you a 2D or 3D projection of the body and its damaged elements.
QR-code for APP instalation
To connect to a Phone or Tablet, you need to scan the QR code in the instructions for the thickness gauge and install the application. Then, with the Thickness Gauge turned on, you need to enter the application and connect the device to your Gadget.

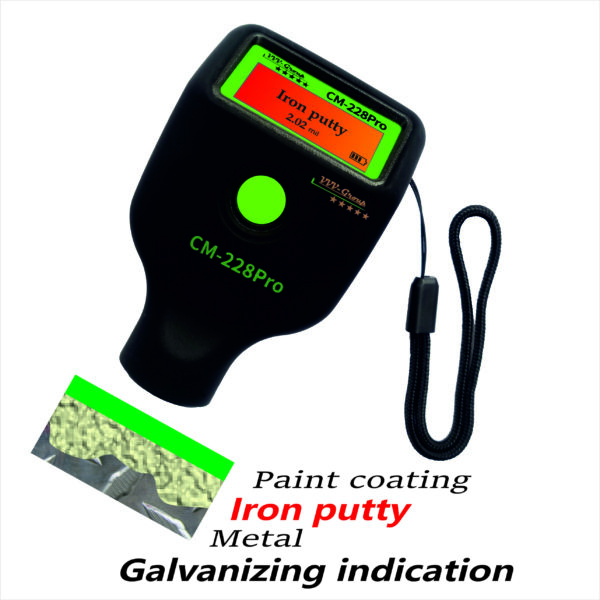

Thickness Gauge CM-228Pro+ shows the presence of galvanizing on a metal surface, and can also recognize metallized putty, which began to be used when repairing car parts in order to deceive the thickness gauge

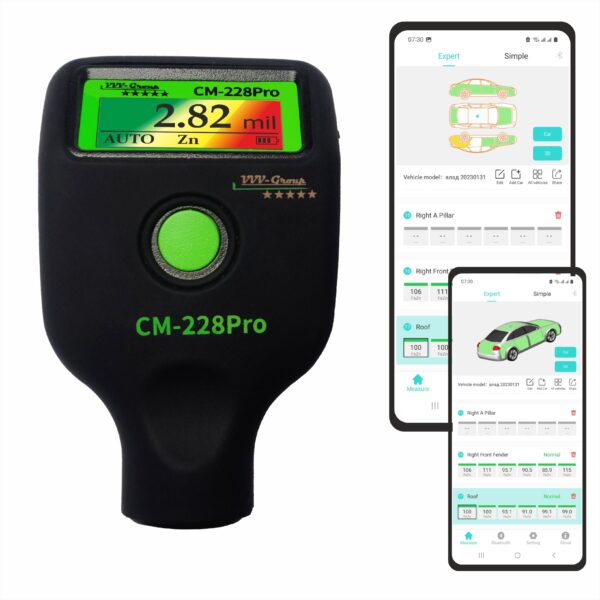

Paint thickness gauge СM-228Pro+ and its reports in the APP
The Bluetooth app of the Paint Thickness Gauge CM-228Pro+ contains a simple standard measurement report without reference to vehicle parts. This report contains 50 measurements in each Group, showing the Minimum, Average and Maximum values, as well as the deviation. The user can set the upper and lower limit. This report will be useful when using the Coating Thickness Gauge in industrial measurements.
A simple and reliable way to transfer data to an iOS or Android device.
Measurement data can be exported to PDF, CSV or TXT format for further use
It is possible to add comments to each measurement.

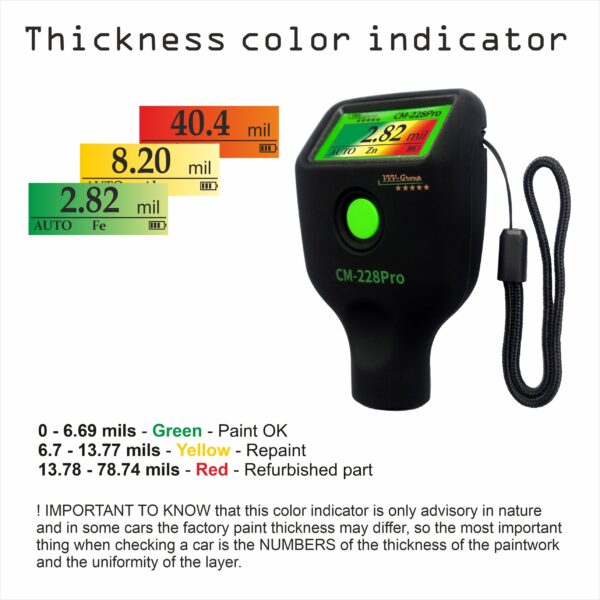

Color indicator TRAFFIC LIGHT
To prompt the user, a different COLOR of the display backlight is used, namely:
0 – 6.69 mils – Green – Paint OK
6.7 – 13.77 mils – Yellow – Repaint
13.78 – 78.74 mils – Red – Refurbished part
The Paint Thickness Gauge SM-228Pro+ also has sound prompts.
Short beep – Green Paint OK
Two short beeps – Yellow Repaint
Long beep – Red color Refurbished part (putty)
! IMPORTANT TO KNOW that this color indicator is only advisory in nature and in some cars the factory paint thickness may differ, so the most important thing when checking a car is the NUMBERS of the thickness of the paintwork and the uniformity of the layer.

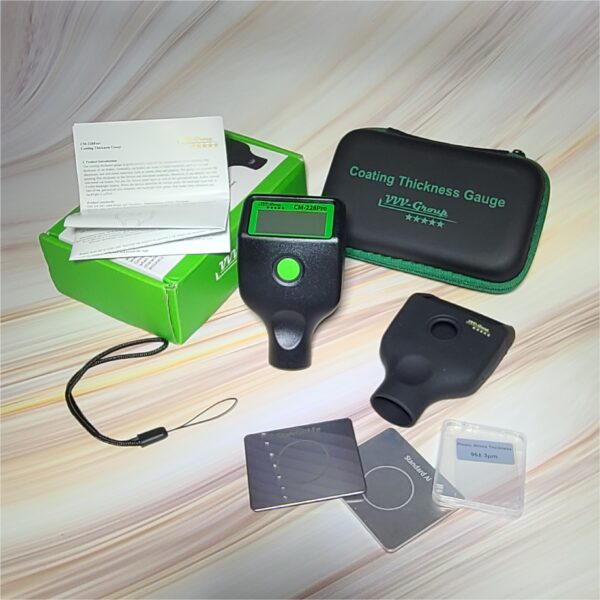

Included in the package:
Paint Thickness gauge VVV-Group СM-228Pro+
PU carrying and storage case
Rubber protective boot
Calibration kit
Manual with APP QR-code
2pcs of 1.5V AAA battery
Very Simple and Easy to Use
Once you receive the thickness gauge, you do not need to calibrate it. You can simply install the batteries and the Paint Thickness Gauge will be completely ready for use.
For detailed settings, the user only needs to calibrate the zero surface (zero 0), while the rest of the range is automatically calibrated.
Coating Thickness Gauge SM-228Pro+ – The best choice for both Professionals and Beginners.
Paint thickness gauges are often used to check cars. This device will help the user to look under the paint and see everything that is hidden under the perfect paint coating.
Paint Thickness Gauge СM-228Pro+ This is the best model for checking cars. This thickness gauge combines all the necessary functions, while it has a very convenient shape and small size. The package of this thickness gauge includes a protective rubber case, as well as a PU case, this is an ideal kit for carrying and storing the device.
The most high-tech Paint Thickness Gauge CM-228Pro+ from VVV-Group. Model 2024.

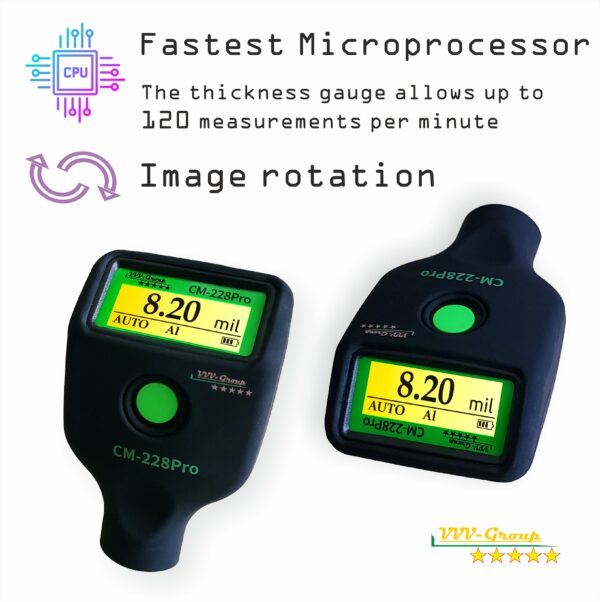

The Coating Thickness Gauge CM-228Pro+ is equipped with the newest and most powerful processor! The measurement speed of this device is two measurements per second, which is up to 120 measurements per minute. This is the fastest Paint Thickness Gauge today.
This model has high accuracy and measurement speed for ease of professional use.
The CM-228Pro+ thickness gauge can be used by car dealerships, car auctions, detailing centers, and third-party appraisers. The ability to create specific, detailed reports will be useful to auto business professionals of any level.
The use of Synthetic Ruby in the design of the measuring probe significantly increases the service life of the thickness gauge as it reduces the possibility of mechanical wear of the sensor to a minimum.
Thickness gauge CM-228Pro+ will find everything!
Measuring Coating on magnetic metal (Iron) in other devices is carried out by measuring the level of electromagnetic induction. Coating Thickness Gauge CM-228Pro+ For the first time uses the measurement method – the Hall Effect, which allows you to increase the accuracy of measurement, as well as check the composition of the coating structurally. This method allows you to identify metalized putty, which in 2023 began to be used in some countries in order to HIDE repairs from thickness gauges.
