LARGE DISPLAY – The coating thickness gauge CM-205 FN is equipped with a large 2.2’ display with ice-backlight and high definition data display. All values are in large print, which improves the user experience and usability of the device.
ACCURACE AND USABILITY – The thickness gauge accurately measures on surfaces of any shape – concave, rough and convex, thanks to the dynamic design of the measuring sensor. Device has light weight and fits comfortably in the hand, and is also equipped with large buttons for working with gloves.
MAIN PARAMETERS – Resolution: 0.1um/0.01mils; Measuring range: 0~1500um (0~59.1mils); Automatic recognition for iron (ferrous) and aluminum (non-ferrous) substrates; Digital LCD display for clear reading; Automatic shutdown function; Accuracy: ± 3%; Measuring units: um and mil; Calibration: Easy and fast calibration of the zero surface.
RELIABILITY AND DURABILITY – The measuring sensor is made of steel and coated with Teflon for better protection and durability. The thickness gauge works with high precision in all weather conditions – temperatures up to -13…104F, high humidity and gas contamination.
WIDE USES – It is highly accurate and compact instrument used to quickly and accurately measure thickness of coating or plating on almost all kinds of metal surface. This device can be used for determining the average thickness of paint on the car body, used by amateurs and professionals in manufacturing, workshops, paint shops, in the automotive.

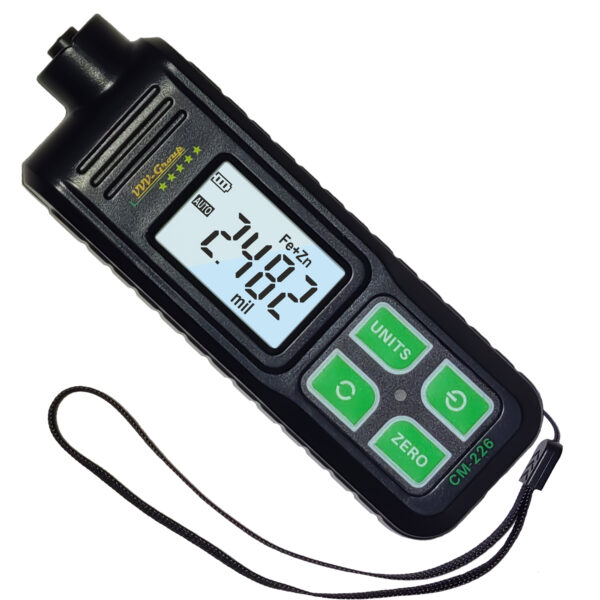

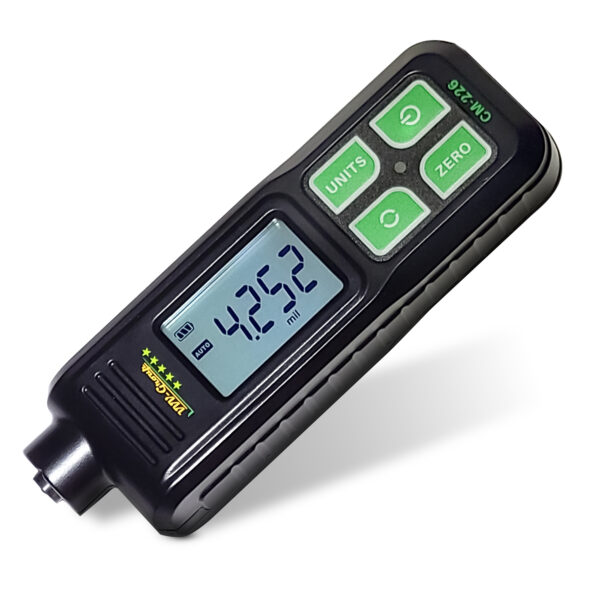

Thanks to its high accuracy and low cost, the Paint Thickness Gauge CM-226 is an ideal tool for car inspection. This digital tester has received wide recognition among Automakers, auto auctions and auto experts.

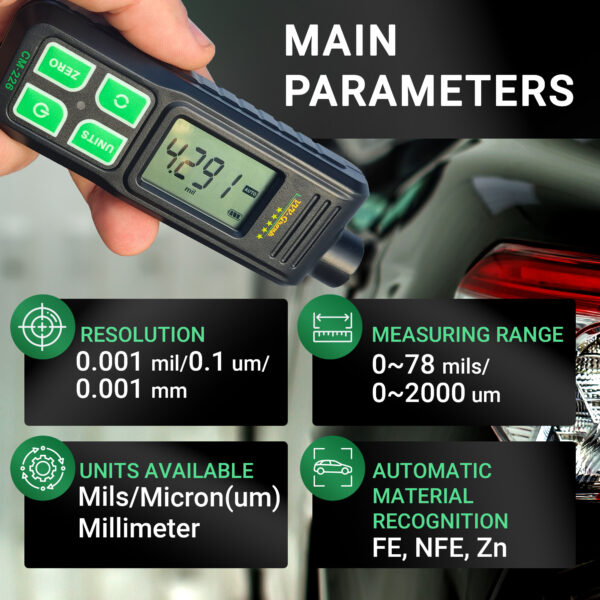

Paint Thickness Meter CM-226 have a measurement range of 0-78 mils (0~2000μm), with a resolution of up to 0.001mils (0.1μm). When measuring, the user only needs to quickly fit the probe tip to the surface of the object to be measured. When the probe shrinks into the instrument, the instrument can automatically distinguish the properties of the substrate and measure the thickness of the coating (plating) layer.
Specifications:
Base type:
Ferrous, Galvanized and non-ferrous metals (Fe, NFe, Zn);
The high-quality and accurate Paint Thickness Gauge CM-226 is one of the best coating thickness gauges among the products of the VVV-Group Company. The CM-226 thickness gauge is very convenient to use and includes the entire set of necessary functions both for checking cars and for high-precision production measurements. Our company’s engineers have developed one of the best models of 2024, which is available for purchase today. Paint Thickness Gauge CM-226 has a built-in magnetic induction and eddies current effect integrated probe, which can non-destructively measure the thickness of non-conductive coatings on metal surfaces and non-ferromagnetic metal coatings on ferromagnetic metals (such as iron, nickel, cobalt). Specific uses include measuring the thickness of the paint or galvanized layer on the surface of iron and stainless steel and the thickness of the paint or plastic film on the surface of aluminum and copper.

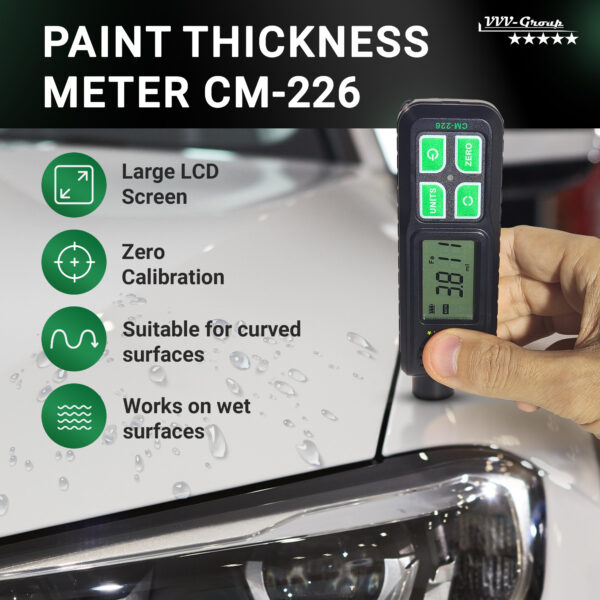

The adjustment of the Paint Thickness Gauge СM-226 is carried out by means of a very simple Zero Calibration
The СM-226 paint thickness gauge has the simplest calibration among all coating thickness gauges!

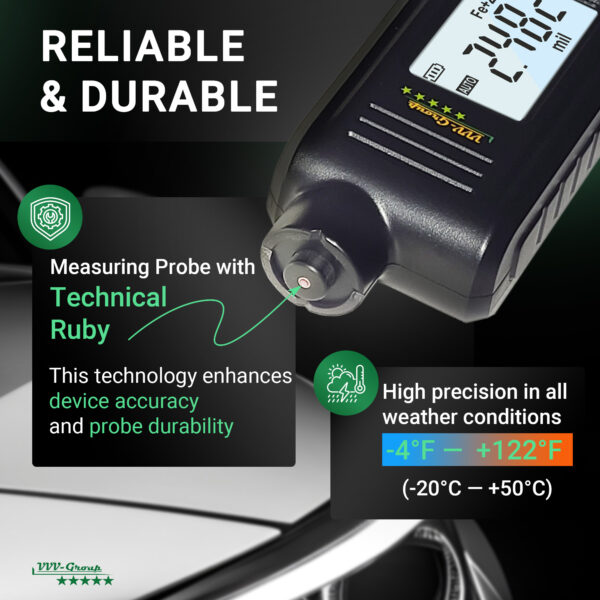

Thanks to the latest software development, as well as the use of technical ruby in the design of the measuring probe, this thickness gauge is calibrated only by adjusting the zero surface. In this case, the algorithm itself adapts the detailed setting within the entire measuring range of the thickness gauge. That is, the user only needs to do a “Zero Calibration”
Only Three simple steps:
Turn on the calibration mode by long pressing the “ZERO” button until the flashing “Zero” icon appears on the display

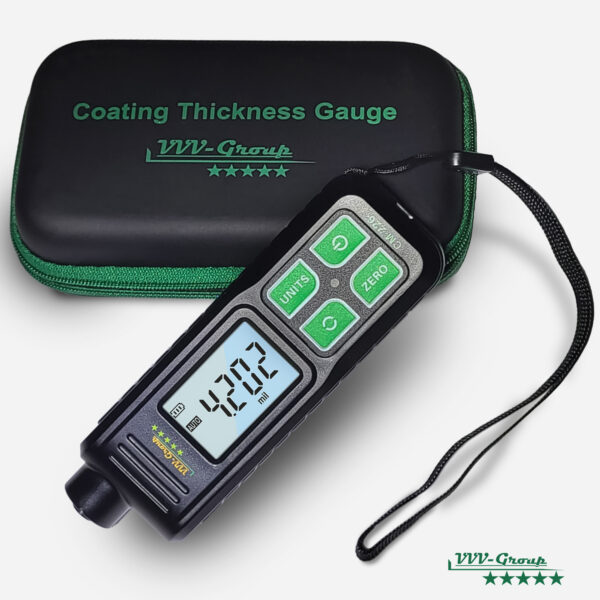

Apply the thickness gauge to the zero iron and aluminum surface in any order (Plates are included in the kit with the device)
To exit the calibration mode, briefly press the “Zero” button
Wide Application:
Paint thickness gauge used to measure the thickness of paint coatings on various surfaces, including cars. This tool helps in assessing the condition of the paint job, and in verifying if a car has undergone repainting or repairs.

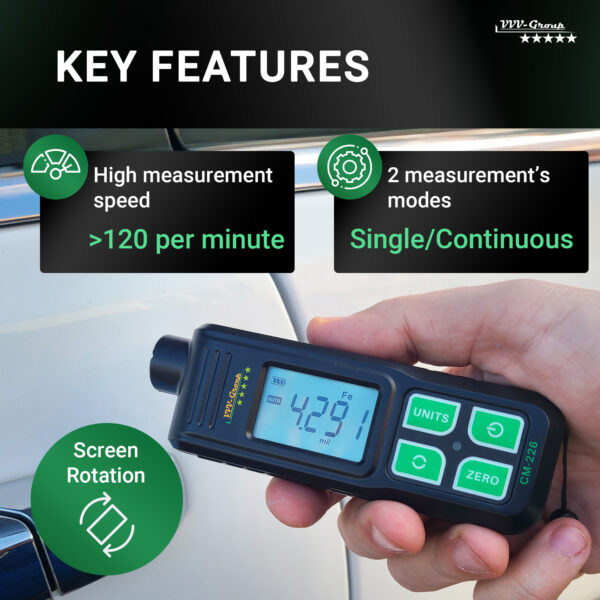

Coating Thickness Gauge CM-226 is very convenient and easy to use, with high measurement accuracy
Car Testing: Checking vehicles for damage and repainted parts using a paint thickness gauge is a crucial step in automotive inspection and appraisal processes. Paint thickness gauge is used to measure the thickness of the paint layer on various parts of the vehicle’s body, such as the hood, doors, fenders, and bumpers. Significant variations in paint thickness may indicate areas that have been repaired or repainted due to damage.
Anti-corrosion Coating: Measuring the thickness of an anti-corrosion coating using a paint thickness gauge is crucial for ensuring proper protection against corrosion and maintaining the integrity of metal surfaces. Use the measurement data to verify that the anti-corrosion coating meets the desired thickness specifications and provides adequate protection against corrosion.
Fireproof Coating: Measuring the thickness of a fire protection coating using a paint thickness gauge is a critical step in ensuring the effectiveness and reliability of fire protection systems. Use the measurement data to verify that the fire protection coating meets the desired thickness specifications and provides the necessary level of fire resistance
Conveyor Painting: Conveyor painting with precision control using a paint coating thickness gauge revolutionizes coating application processes.
Integrating precision control with a paint coating thickness gauge into conveyor painting processes ensures consistent quality, minimizes waste, and optimizes efficiency, making it a important tool for modern manufacturing operations.
