Vibration Meter VM-420
$109.99
- Vibration Meter VM-420 help you predict and avoid failures earlier. The vibration meter is utilized in several applications, primarily to monitor the conditions of motors, HVAC, engines, generators, pumps, fans, compressors, and turbines
- Ability to switch the measurement frequency Measurement frequency range of acceleration (10Hz～1KHz (LO) 1KHz～15KHz (HI)), Measurement frequency range of velocity (10Hz～1KHz (LO)), Measurement frequency range of displacement (10Hz～1KHz (LO))

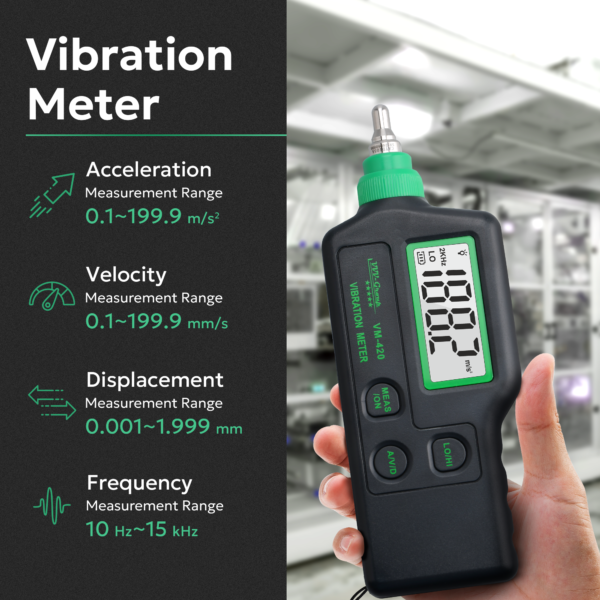

- Vibration Meter gauge adopts a piezoceramic accelerometer (shearing Type ) acceleration: 0.1 to 199.9m/s2 at peak, velocity: 0.1 to 199.9mm/s RMS, and displacement: 0.001~1.999mm. Accuracy: ±10%.
- Vibration Meter Gauge has Double measurement button for meeting level or vertical measurement requirements. Magnetic probe with spiral interface, easy to install and remove, fit various measurement condition.
Vibration Meter VM-420: It is suitable for monitoring all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc.

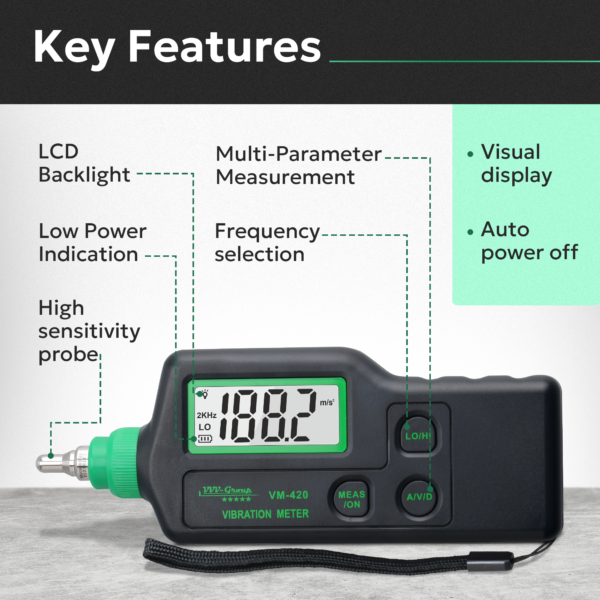

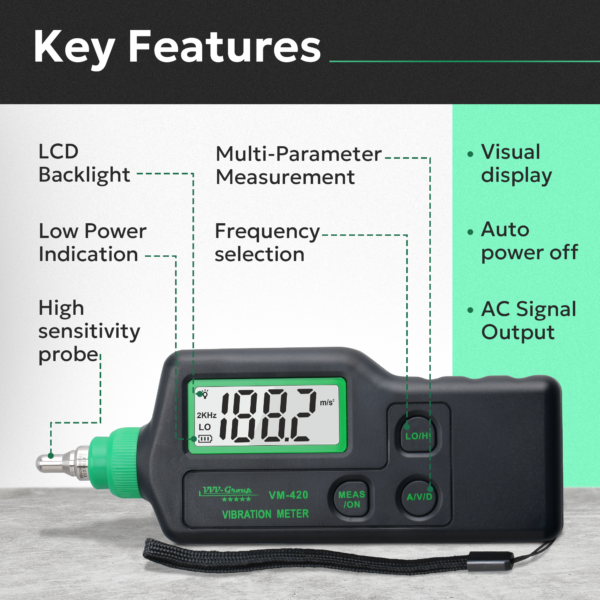

Vibration Meter possesses the following features:

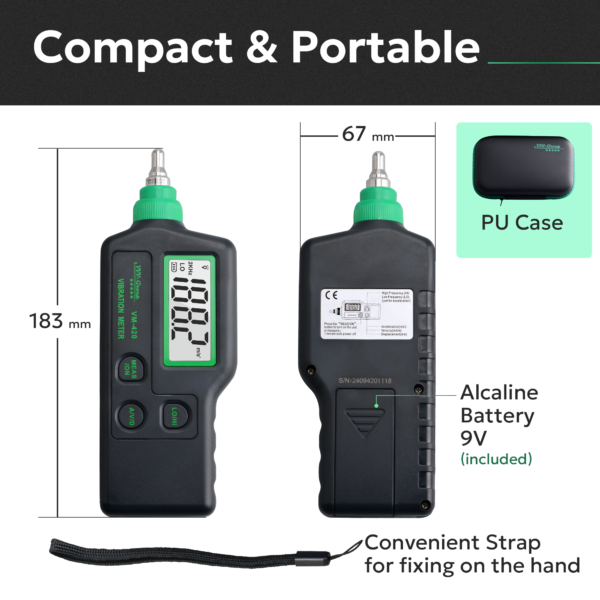

1.Simple to use, the structure is compact, portable for carrying along with measurement.
2.Visually display measurement value and state.
3.Acceleration, velocity and displacement measurement.
4.Different vibration frequency selection.

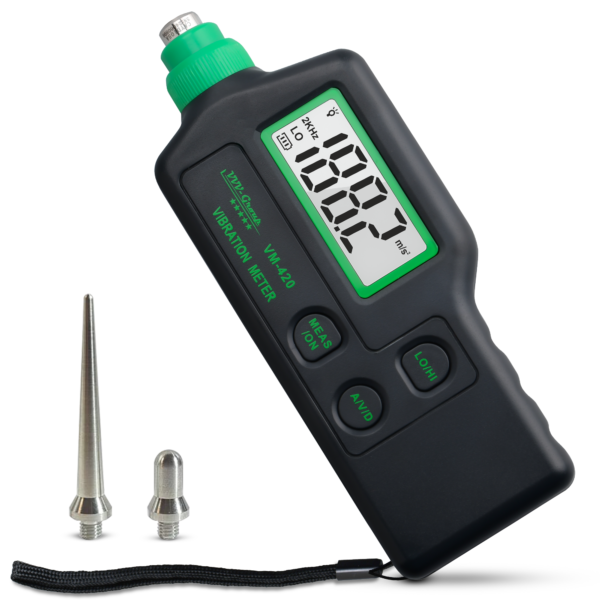

5.High sensitivity probe for accurate measurement Pro- vides long and short probe head ,each one is suitable for different situation measurement.
6.Equipped with AC signal output interface.
7.Low power indication. 8.Auto power-off. 9.LCD backlight.
The Vibration Meter VM-420 is a versatile device designed for measuring vibration parameters in various mechanical systems, particularly those with rotating and reciprocating components. Here are the key features of the VM-420:
- Ease of Use: It is simple to operate with a compact design, making it portable and convenient for on-the-go measurements.
- Visual Display: The device provides a clear visual display of the measurement values and operational status.
- Multi-Parameter Measurement: It measures acceleration, velocity, and displacement.
- Frequency Selection: Allows selection of different vibration frequencies for various applications.
- High Sensitivity Probe: Comes with a high-sensitivity probe for precise measurements. The device includes both long and short probe heads to accommodate different measurement situations.
- AC Signal Output: Equipped with an AC signal output interface for external connections.
- Low Power Indication: Alerts users when the battery is low.
- Auto Power-Off: Automatically powers off to conserve energy when not in use.
- LCD Backlight: Features a backlight for easy readability in low-light conditions.
This tool is useful across industries like mechanical manufacturing, electric power, metallurgy, and general aviation.
